Does Your Home Need a Sediment Pre-Filter?

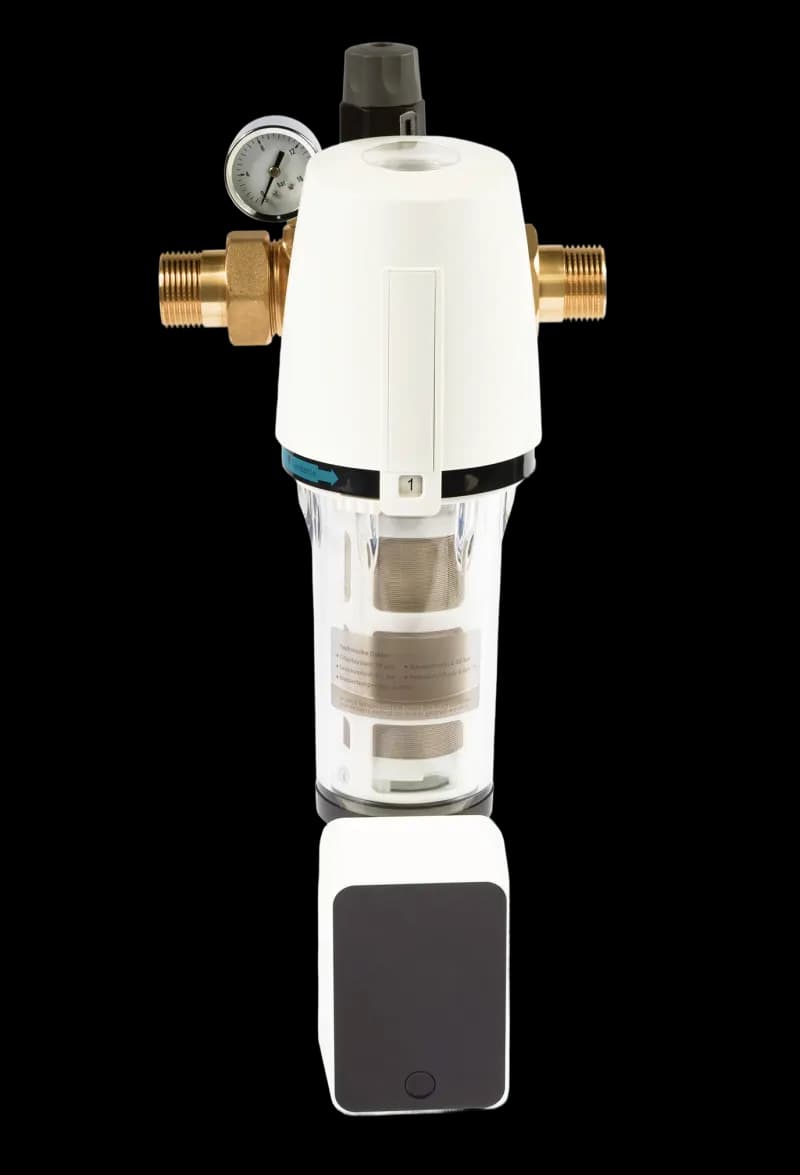

1" BACKWASH PARTICLE FILTER
The automatic 1" backwash filter with integrated pressure reducer and pressure gauge is designed for filtering drinking and process water. It protects water pipes and connected systems from corrosion and malfunctions caused by foreign particles (rust, shavings, sand, etc.). Made of high-strength, technical-grade plastic, it filters particles larger than 90 µm and includes a 12-part date indicator for maintenance tracking.
How an Automatic Backwash Sediment Filter Works
The Particle Filter is the first line of defence in any whole-house water treatment system. Municipal water contains sand, rust particles, pipe shavings, and sediment that cause premature wear in valves, boilers, and appliances — and reduce the effectiveness of downstream fine filtration. The Mam Nature Particle Filter stops all of this before it reaches your home's plumbing.
Sediment Capture at 90 µm
The stainless steel mesh filter captures all particles larger than 90 µm — sand, rust flakes, pipe debris, mineral deposits — as water enters the housing. The mesh is reusable and never needs replacement.
Integrated Pressure Regulation
An adjustable pressure reducer (soundproofed) and pressure gauge are built directly into the unit. High municipal water pressure (which causes pipe wear and appliance damage) is reduced and stabilised automatically. The rotatable connectors allow horizontal or vertical installation.
Backwash Self-Cleaning in 5–10 Seconds
Unlike cartridge filters that require replacement, the Particle Filter uses a backwash system: the included controller reverses the flow on its own and trapped particles are flushed out in seconds — a 15-second cycle, once or twice a year. A manual valve is fitted too, if you ever want to flush it yourself. No filter media to buy, no cartridges to dispose of.
Lead-Free Construction
The housing uses no brass or lead-containing components. All water-contact materials are certified lead-free — a critical distinction, as many competing particle filters use brass fittings that can leach low levels of lead into water over time.
Why Every Home Needs a Sediment Pre-filter
Older Properties
Homes with iron or copper pipes continuously shed microscopic rust and metal particles into the water supply. Even newer PEX pipes release fine debris during the first years of use. A particle filter is essential protection.
Rural & Well Water
Well water and some rural supply systems carry significantly higher sediment loads than municipal water. Without pre-filtration, sand and debris can damage pumps, valves, and fine-filtration cartridges within weeks.
Before Fine Filtration
Any fine filter — including the Mam Nature Fine Filter — performs significantly better with a particle pre-filter installed upstream. Sediment clogs fine filter cartridges, reducing their lifespan from 150 m³ to potentially a fraction of that.
High-Pressure Areas
Many municipal supplies deliver water at 6–8 bar — well above the 3–4 bar optimal for home plumbing. The integrated pressure reducer reduces this to safe levels, protecting all downstream appliances.
Frequently Asked Questions
What is the difference between a particle filter and a fine filter?
A particle filter (sediment filter) removes visible and near-visible solid particles — sand, rust, pipe debris — at 90 µm or larger. A fine filter uses activated carbon and adsorption media to remove dissolved chemical contaminants like PFAS, heavy metals, chlorine, and pesticides at molecular level. Both are needed for complete water treatment: the particle filter protects the fine filter and extends its lifespan.
How often does the particle filter need cleaning?
It cleans itself. The included controller runs the backwash cycle automatically once or twice a year and shows the next due cycle on its display. A manual valve is also fitted for an on-demand 5–10 second flush if you ever notice reduced water pressure. There is no filter media to replace, no cartridge to buy. The stainless steel mesh lasts indefinitely.
Is the particle filter lead-free?
Yes. All water-contact materials in the Mam Nature Particle Filter are certified lead-free. This is an important distinction: many standard particle filters use brass fittings, which can contain up to 8% lead and may leach trace amounts into water over time. The Mam Nature Particle Filter uses no brass components.
Does the particle filter remove chlorine or heavy metals?
No — the particle filter is designed for physical sediment removal only. For chemical contaminants like PFAS, chlorine, heavy metals, and BPA, the Fine Filter with the protein-fibre cartridge is required. The two filters are designed to work in sequence.
Technical Data
- Materials:
High-strength, technical-grade plastic
- Filtration:
Filters particles larger than 90 µm
- Features:
Continuously adjustable pressure reducer (soundproofed) and a pressure gauge
- Required Maintenance:
Automatic backwash cycle, 1–2× per year (takes 15 seconds)
- Connections:
1 inch (rotatable 180° for horizontal or vertical installation)
- Application:
Filtration of drinking and process water (Not for chemically treated water, oils, greases, etc.)
- Capacity:
Unlimited
Discover our other solutions
WATER LIME
A proven alternative for water softening systems on purely physical basis. Prevents hard limescale deposits.
Learn More
WATER FINE FILTER
A unique quadruple filtration system: Physical (20 µm & 5 µm), Activated carbon, protein-fibre adsorption, and Ionized silver.
Learn More
The Swiss Water DYNAMIZER
Passive 316L stainless-steel spiral-flow chamber; no electricity, dosing chemicals or replaceable cartridge.
Learn More

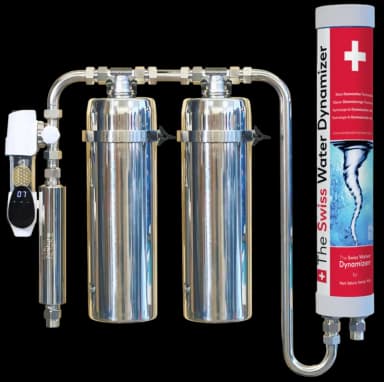

COMPLETE SYSTEM
